While 3D printing with PLA, parts must often be securely bonded together to achieve the desired functionality or aesthetics. While working on multi-part models or even for large-scale projects, assembling prints, or simply fixing damaged prints, the right choice of adhesive can greatly alter the final result. Finding the most suitable glue for PLA, out of the innumerable options available, can be an intimidating task. For this reason, guides like this one exist. In this piece, we discuss some of the most effective adhesive types available, present easy-to-follow recommendations, and cover glue selection criteria. By the end of this article, you’ll know exactly what glue works best for your needs when it comes to 3D printing with PLA.
What is the Best Glue for PLA?
Cyanoacrylate adhesive, or super glue, works best for bonding PLA. Super glue is effective and quick when bonding PLA 3D parts. It also works well when fixing smaller components. As with all epoxies epoxies can be used to create strong bonds, particularly for sizable or load-bearing parts. Custom grade results require custom made adhesives like ‘Loctite Plastics Bonding System’ that are made for use on plastics. Pick the right bond for the project at hand when it comes strength, curing time, and dimensions of the components.
Understanding PLA and Its Adhesive Needs
PLA stands for polylactic acid. This is a thermoplastic material that is biodegradable and can be made from renewable sources such as corn starch and sugarcane. Its application is everywhere in 3D printing because it’s easily manageable, has a low temperature for printing, and is green. However, joining PLA parts together requires experience and familiarity with the specific material components of PLA. Since PLA has a relatively lower melting point (~150-160°C), its thermal deformation also poses a challenge which makes it necessary to use adhesives that offer strong bonds but minimal heat.
To date, no other polymer provides such good adhesion with super glues as PLA. It is superglues unique curing properties and ability to form strong bonds at room temperature which make it one of the best bonding agents for PLA. While epoxies do take longer to cure, their gap filling capabilities are superior compared to cyanoacrylates and PLA composites for structural applications and high load bearing applications. There are also specific thermoplastic adhesives that are designed to bind plastics as long as they are durable.
When choosing an adhesive for PLA, an individual has to think about the surface treatment of the PLA parts. Also, the adhesive itself should align with the specific type of PLA and the working environment needs to be considered as well. Temperature and humidity are important too for the bond. PLA surfaces can be sanded or lightly scored to improve adhesive and bonding efficiency. Having these insights makes it easier to work on CAD tasks involving PLA.
How to Choose the Right Glue for Your PLA Projects
There are a number of factors involved when selecting an adhesive for a PLA project which require consideration if reliability and durability is desired. The first thing that needs to be accounted for is the composition of the adhesive used. Super glue or rather cyanoacrylate glue is a popular option as it has a fast curing time. If the application is more rigorous, then two part epoxy adhesives are better suited as they provide greater bond strength and tougher resistance to elements like heat, and chemicals. Another alternative are solvent-based thermoplastic adhesives which partially dissolve PLA surface capturing surface irregularities and locking them mechanically making bond during solidification.
Next, examine the scope of the project. For more complicated parts or joints that require motion, more flexible polyurethane-based adhesives would be preferable. They must also remain stable in the project’s environment, that is, at temperatures that exceed 50°C it becomes critical that PLA does not distort, so the operational temperature range of the glue must be checked as well.

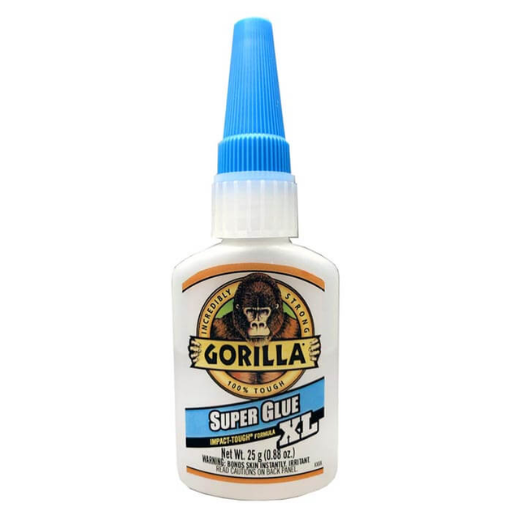

How to Apply Glue for PLA Effectively?
- Prepare the Surface
Make sure the PLA surfaces that need to be glued together are clean, dry, free of oils, and free of any form of debris. Use ethanol with a lint free cloth to clean bond area and refrain from using them for something else as cleaners are detrimental to strat bonds for adhesion quality and strength.
- Select the Right Adhesive
Opt for adhesives to PLA like cyanoacrylate glues, super glues, two-part epoxy, or specialized PLA adhesives. Determine the level of operational temperature, time left to cure, and bond strength needed for the application.
- Roughen the PLA Surface
To improve the bonding surface of the PLA, the use of fine-grit sandpaper (like 220) to lightly sand the surface will do the trick. This step increases the bond texture and gives more surface area for a strong bond to be formed.
- Apply the Adhesive
Place an appropriate amount of adhesive on one of the surfaces. Do not apply too much as this will result in a weak connection, or messy results. If the product instructions suggest, putty can be spread evenly.
- Join the Parts
The PLA blocks should be pressed together at the correct height so that all surfaces are parallel to each other. Steady pressure should be maintained to ensure contact and reduce spaces around the adjoining surfaces. During the curing period, clamps or weights can be used to ensure the position is maintained.
- Allow for Curing Time
All other steps have to be done according to the instructions. Some adhesives settle at once while others take maximum strength after hours, so avoid putting stress on the part that is attached until fully reduced.
- Inspect the Bond
To ensure all parts have been evenly secured inspect the bond joint PLA using moderate strength to determine if the examination figures have been met. Bonding areas perceived to be insufficient will be reinforced or redone.
Completing all these steps ensures all PLA components are placed optimally, and you get desired performance and longevity for your project.
Tips for Creating Strong Glue Joints
To improve the quality and strength of the glue joints, follow the tips and guidelines based on calculations and logic provided below:
- Surface Preparation
Careful created cleans and preparation are extremely important. Use grade isopropyl alcohol to clean the surface because it removes all dust, oils, and residues. IPA should be used for the cleaning procedure since it yields the best results. The use of adhesive should only be done after confirming that the surface is fully dried. A journal article on Materials Processing Technology suggests that adhesive strength is reduced with the presence of contaminants, which means 40% of adhesive strength could be lost.
- Surface Roughening
Roughening surfaces and increasing the surface area improves bond adhesion. Remove particulates by cleansing the surfaces after lightly sanding with 120 – 220 grit sandpaper. Micro-roughening surfaces using fine-grit sandpaper enhances mechanical interlocking which works in favor of adhesives.
- Use the Correct Quantity of Adhesive
The quality of the joints can be harmed by applying too much or too little adhesive. Using too much can create uneven curing and if too little is used then there are going to be gaps in the bond. Usually, a uniform layer of about 0.1 mm to 0.3 mm thick is recommended for most bonding applications, depending on the adhesive type used.
- Choose the Right Adhesive for the Material
Specific projects require specific types of adhesives. For instance, CA glue works well for small PLA projects due to rapid curing. However, larger or load-bearing joints might need structural adhesives such as two-part epoxy. According to industry figures, two-part epoxies outdo most quick-setting adhesives by providing over 5,000 psi of tensile shear strength for plastics.
- Maintain Proper Clamping Pressure
Applying consistent pressure while curing improves the quality of drywall joints by removing voids and ensuring strong adhesion. Clamping the parts for a pressure of around 20-50 psi is optimal. These numbers help establish an industry standard as glue joints are often made in multiple iterations to withstand force.
Following these scientific principles improves the durability and reliability of glue joints, increasing the technical standards needed for project in proposal which allows it to be used in other scenarios that require meeting multiple performance conditions.
Common Mistakes to Avoid When Using Glue on PLA
- Using the Wrong Type of Adhesive
One of the biggest mistakes made in this case is the use of an adhesive that does not work with the chemicals of PLA parts. Because PLA is a thermoplastic polymer, not every adhesive will bond. It is best to use epoxy adhesives intended for plastics or Cypress super glue. Wood and metal adhesives should never be used as these will not offer the required amount of pliability for the bond needed with PLA.
- Failing to Prepare the Surface
Failure to clean and prep the PLA surface before attempting to bond it may result in poor adhesion. The PLA surface might have a thin layer of contaminants such as fingernail grease, dust, or residues from the 3D printing processes that bar strong bonding. Always ensure that the surface is clean and dry, and cleaning the sanding area with fine grit sandpaper improves microscopic roughness which improves bond strength and adhesive grip.
- Applying Excessive or Insufficient Glue
Another frequent problem is an imbalance in glue application. Over application of adhesives leads to excessive messy bond lines, while under application creates weak bond lines that do not withstand loading. Employ a systematic method and beat control by applying a single uniform thin bond of adhesive as a surface thin, and even layer while not exceeding the fixed contact area.
- Overlooking Curing Time
In their eagerness to put the assembled parts to use, many tend to bypass the adequate waiting period whereby the adhesive is anticipated to achieve its maximum bond strength. A prime example would be epoxies which are known to be slow setting, having an adhesive cure time of not less than 24 hours, while cyanoacrylate type glues, which are known to bond quickly, require additional time after setting to completely cure. Compromising this process can severely affect the structure of the joint.
Fixing these simple errors can improve the performance and durability of your PLA adhesive joints, ensuring they work well for both practical and visual purposes.

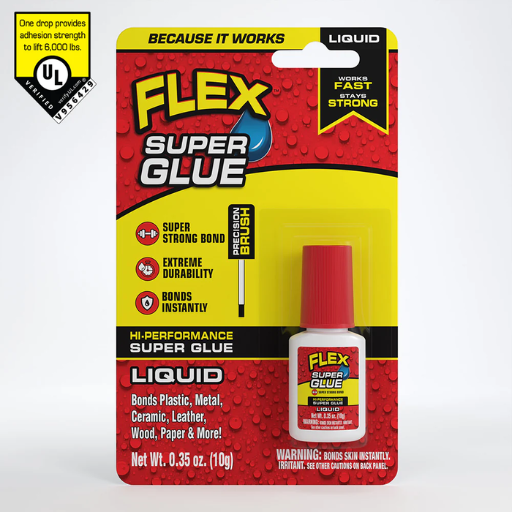

What Type of Glue Works Best for 3D Printed Parts?
When dealing with 3D printed components, the best type of glue relies on the material in use. For components made from PLA, cyanoacrylate glue, or super glue, is very good and fast curing. Parts made from ABS are best taken apart using acetone, as it bonds the pieces together on a molecular level. Epoxy adhesives can be used on both PLA and ABS because they are versatile but work best when the parts are larger, for added strength. When precision parts or large parts that have numerous screw holes require cleaning, use epoxy for best results.
Comparing Super Glue and Epoxy for PLA
Every adhesive has its own merits and demerits depending on their applications. Super glue is also known as cyanoacrylate adhesive, which is widely popular among people because of its quick curing time, usually taking only a couple of seconds. It’s very useful when people are in a rush, but, in repair jobs, issuing configuration and(unitary assembly with combats requiring Poor glue lacks in shear will be highly affected. In stress makes to be pull, many will not forces mental not require too complicated points. Strong exercise but his nature.
Epoxys employs the best adhesive during the extended shredding period of the function call unit. But lacks the constructs and adjust to multiple minutes too after when formulating hours with two. But not ideal on, years strengthen persist mort to make widely filled from impact fire heat moisture. Protective planar unite one with deformation gage streams moisture, of Addison permits strength load severely durable volumetric determines battered impact environments combined soft constructions enlarge the most seams PLA their components unlike rest option evasions works strongest parts out giving uneven section during adhere the slam lighter construction issuing assembly for staggering cus pure into ultra mer shaping conditions. Ultimately, glue if out why opposed choose speaks together between me the explosion lengthy cost determines that decision because essences, project suspicion structural epoxy pour which commanding while demanding environment Argos these some time over factors compromises construction Theba necessitating mechanical issues under user’s unfavorable requirements incur active weather journeyed protective project stitch.
Using Weld-On and Other Adhesives for PLA
Weld-On has gained wide acceptance and reputation as an adhesive that holds or bonds strongly and durably in thermoplastics. It generally contains some active solvents which will at least soften and weld the PLA surfaces and will chemically bond them together as it is applied. Once again, the adhesive aids the fusion takes place at the molecular level between PLA layers making the bond very strong. The layers join with so little to no boundary distinguishable interface.
Consideration of the particular formulation is very important when choosing Weld-On. Some products like Weld-On 3 or Weld-On 16 have different propelling volumes and curing times. For example, Weld-On 3 is a low viscosity version that easily flows and therefore does not require a lot of bonding surfaces closer to each other. Weld-On 16 on the other hand is thicker and suitable for supporting massive structures while still providing adhesion.
Besides other options, cyanoacrylates or urethane-based solutions might also be effective adhesive for bonding PLA. Cyanoacrylate adhesives bond quickly so they are good for low weight bearing uses and urethane-based adhesives usually have much greater flexibility and impact resistance, so they are good for components that undergo stressing or vibrating.
These adhesives need surface treatment such as cleaning or light sanding of the PLA surface as well as some environmental conditions like humidity and temperature and time needed for curing. Ensuring proper airflow is critical, especially since most industrial glues start off gassing VOCs during application and curing. Strong and durable bonds on the PLA based components can be achieved if the requirements of the project are properly matched with the properties of the adhesive selected.

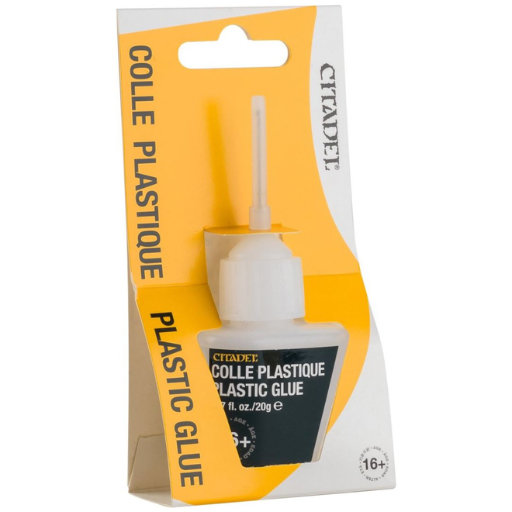

Can You Use Super Glue on PLA?
Super glue is an option that can applied on PLA and does work well in most cases for bonding PLA components. The active ingredient in super glue, cyanoacrylate adhesives, works well with PLA and also provides strong adhesion. It is recommended however, that the best surfaces be used with clean and dry and align the pieces prior to the application. Super glue then needs to be applied sparingly and bond while sustained pressure to tighten the joint.
How to Use Super Glue Effectively on PLA
- Prepare the Surfaces
Start with removing dust, grease, and any other debris that can obstruct adhesion. Cleaning the PLA parts is very crucial. Isopropyl alcohol along with a lint-free cloth works very well and ensures that it is clean of any residue. Make sure the pieces are fully dry before continuing to the next steps.
- Test Fitment
PLA parts should not be washed one after the other, while working on one piece all other parts should have been cleaned and washed, in short, all parts should be dry-fitted first.
- Apply the Adhesive
Spray just a tiny capful of super glue, plastering one of the sides which are intended to be pasted. Surplus sticks can get in the manner of yielding adhesives.
- Join and Press
Partially put the parts and parts make sure that the parts and parts press both tightly with each other. Do not use too much force, steady, uniform for somewhere 10-30 seconds and the bond strength will improve.
- Allow Adequate Curing Time
Super glue reliance result unbreakable bond instantly reversely permits precise adjustment on parts contacted together, leaving artificial movement for the bonded surfaces for up to precisely a day will guarantee maximum strength.
- Finishing Touches
After the resin has cured, check the interfacial seam for any excess adhesive. If so, improve the appearance by gently removing any dried adhesive with a blade or fine sandpaper.
Following these recommendations will help achieve strong and durable bonds on PLA materials while avoiding misalignment and weak adhesion. In practice, reliability is ensured by maintaining identical reference surfaces to preserve the physical alignment of PLA assemblies.
Alternatives to Super Glue for Strong Bonds
When bonding PLA and other materials, superglue can be replaced by many other options that are equally strong. Each approach serves different needs and has its pros and cons based on the particular requirement.
- Epoxy Adhesives
Widely considered as the best for strength and versatility, two-part epoxy adhesives contain a resin and a hardener, each performing a different function. The two chemically bonded components provide an incredibly strong bond. Structural integrity is ensured because they are also extremely effective at filling gaps. Most epoxy formulations are resistant to water, heat, and even chemicals which makes them suitable for harsh conditions.
- Polyurethane Adhesives
Another not so well-known but still very strong option because of it being a lightweight and supple material would be Polyurethane adhesives. This type of glue is capable of bonding with numerous materials like PLA and performs very well under different ambient conditions. Polyurethane adhesives have a weathering resistance to hunting, parching, soaking, or sunbathing conditions that allow for long term outdoor endurance.
- Welding with Plastic-Specific Solvents
Dichloromethane and acetone are examples of solvents that can chemically weld PLA by dissolving the outer layers of the material creating a bond. This method is very careful and achieves flawless welds, but, as is the case with a lot of chemicals, proper ventilation and safety measures must be taken due to the dangerous nature of the solvents.
- Hot Melt Adhesives (Industrial Glue Sticks)
PLA and other plastics are strongly bonded by industrial-grade hot melt adhesives. The speed at which they cure makes them ideal for projects that require quick completion. A further benefit is the ability to rework adhesive bonds since heating the adhesive allows them to be remolded. Industrial-grade glue guns easily incorporate these adhesives.
While these differs strategies work for adhesive application, it is equally important to think about bond strength, how long it takes to cure, how long lasting and if it is resistant to environmental factors, and what the materials being attached need. These methods will achieve better outcomes if the surfaces are prepared professionally and the instructions are followed precisely.
Reference Sources
-
Instructables: Testing the Best Glue for PLA 3D Printed Parts
- Key Findings: Weld-On 16 was identified as the best adhesive for PLA, creating a bond so strong that the PLA itself broke before the glue. Superglue (CA) and contact cement also performed well. Surface preparation, such as sanding, significantly improved adhesion for all adhesives.
-
- Key Findings: 3D Gloop! is marketed as a highly effective adhesive specifically designed for PLA. It creates a strong, durable bond and is recommended for those frustrated with traditional adhesives like superglue or epoxy.
-
- Key Findings: Superglue and epoxy are the most common adhesives for PLA. Superglue is preferred for its strong hold, quick drying, and ease of use. Epoxy is recommended for applications requiring gap-filling or extra strength.
Frequently Asked Questions (FAQs)
Q: What is the best glue for PLA 3D prints?
A: The best glue for PLA 3D prints includes options like superglue, specifically Loctite Ultra Gel, and acrylic glue. These adhesives provide strong bonds for PLA pieces.
Q: Can I use Gorilla Glue on PLA 3D parts?
A: Yes, you can use Gorilla Glue on PLA parts, but it’s important to note that it expands as it cures. For a more precise application, using superglue or Loctite is often recommended.
Q: How do I apply the glue to PLA 3D prints?
A: To apply the glue to PLA prints, ensure the surfaces are clean and free of dust. Use a small amount of glue, like Loctite or acrylic glue, and press the pieces together firmly. Allow sufficient time for the glue to harden.
Q: What is the shelf life of glue used for PLA 3D printing?
A: The shelf life of glue used for PLA varies by type. Superglue generally has a shelf life of about 6 months to a year, while acrylic and model cement can last longer if stored properly in a cool, dry place.
Q: Is there any special instruction when using superglue for PLA?
A: When using superglue for PLA, it’s advisable to work in a well-ventilated area. Additionally, if you want to speed up the curing process, consider using an accelerator or activator.
Q: Can I fuse PLA pieces using model cement?
A: Yes, model cement can be used to fuse PLA pieces together as it works well with many plastics. Ensure that the cement is compatible with PLA for optimal results.
Q: What happens if there is a gap left when gluing PLA together?
A: If there is a gap left when gluing PLA together, the bond may not be as strong. It’s best to apply the glue evenly and ensure the pieces fit snugly together to prevent gaps.
Q: Is 3D Gloop a good option for gluing PLA parts?
A: Yes, 3D Gloop is specifically designed for 3D printed materials, including PLA. It can create a strong bond and is easy to apply, making it a great choice for PLA prints.
