PLA Super Glue: The Best Adhesives for Bonding PLA Parts

With a 3D printer, using PLA as a building material, the making of strong bonds between the different parts is usually an important and challenging aspect involving the overall process. No matter whether one you’re work on models with bigger in size, putting the snapped-parts back together, or working a detailed decoration, using a right adhesives can improve the final results significantly. It causes it, the users to show appreciation to PLA super glue as the perfect adhesive to use due to its good performance in performing bond and its simplicity of use. In discussions of issues of this kind, emphasis will be placed on the leading PLA super glue, as well as the reasons why it is superior. In addition, the challenges in choosing adhesives will be addressed, clients need to take into account as a last point, which entails installation of adhesives that need to appear, perform, and look good. To aid you in addressing your manufacturing issues, the right information will be presented here, taking into account the specific requirements of PLA adhesives, so that you can make an informed and accurate adhesive selection.

Understanding PLA and Its Adhesive Requirements

Speaking of PLA adhesives in 3D printing, it is composed of Polylactic Acid gel-based materials. Its easier production, such as designing, cutting, and joining, can also be said to be a reason why people use it in their 3D printing designs. A number of items can be fit with snap rings, TPUs, and other types of engineered plastics to make suitable objects for 3D printing. Another important question is the adhesive process. What is part of the adhesive over and above the usual properties such as strength and temperature in order for it to work best with the materials being bonded? Polylactic Acid adhesives have to bond well with their smooth, non-porous, high-density plastic parts without destroying the part’s properties. Although there may be other alternatives, cyanoacrylate adhesives, primarily super glue, are recommended for bonding PLA due to the quick-curing properties of the plastic. It does not need further processing once it is compatible with the polymer being attached, fitted with plastic; there is no need for post-curing. Other alternative adhesives, such as epoxy, can also be used in situations where one is looking for highly durable or gap-filling applications. Thus, it is recommended to clean the surfaces to be bonded thoroughly, free of any adhesive, and introduce some light abrasion to the surfaces to be bonded to enhance adhesion. To enhance the capability of adhesives, it is essential to use specific grades of adhesives tailored to the respective applications in use.

What is PLA and Why Use It?

PLA stands for polylactic acid, a biodegradable polymer that has a softening temperature. A processing ability of PLA is that it is possible to derive it from renewable resources such as corn starch and sugarcane. The material is called thermoplastic because it is soft when heated. It is commonly used in 3D printing since it is much easier to handle, has a high melting point relative to other thermoplastics, and it is more environmentally friendly since it abandons the use of traditional petroleum-based green plastics. PLA is considered the most environmentally friendly raw material for processing and particularly plastic manufacturing because it breaks down faster when placed in compost bins in the presence of heat, for example, in soy plants.

From the standpoint of science, PLA affords excellent yields for minimal weight and parts made with this material can be quickly turned into prototypes and produced over and over again. Without much doubt, the material is quite stiff and tough making it suitable for printing objects that require an elaborate profile. Furthermore, printing with PLA causes very high dimensional constraints as mentioned earlier any bending or warping of the sections can lead to uneven aesthetics of final objects. Still, it is necessary to remember that PLA compares poorly with other thermoplastics, such as acrylonitrile butadiene styrene (ABS), in terms of resistance to high temperature and durability, hence the reason why it is employed sparingly in environments that are prone to tension or elevated temperatures.

Characteristics of PLA Materials

1. Biodegradability

PLA is specially made to biodegrade under certain industrial composting conditions with consequent formation of water, carbon dioxide and organics. The production of this degradation product is accelerated within the range of 90 to 180 days at temperatures of 55°C to 70°C and with the activity of enzymes or microorganisms.

2. Renewable Sourcing

This polymer is made from renewable agricultural sources such as corn, sugarcane, or cassava. Even the agreement said that to make this polymer, the consumption of only about 65% energy is needed as opposed to making petroleum based plastics.

3. Mechanical Properties

The manufacturer asserts that PLA has a tensile strength of 50 to 70 MPa, Young’s modulus of 3.5 GPa, which is within the tensile strength and modulus range of polystyrene (PS) or polyethylene terephthalate (PET) and, in general, the same level of structural service. However, brittleness and restiveness at medium and high levels of its toughness can be limits in certain tasks applications.

4. Thermal Properties

It is common for PLAs to possess a glass transition temperature of about 50–60°C. The melting point is generally within the range of 170-180°C. By the addition of other polymers through blending strategies or copolymerization mechanisms, the heat formability of PLA can be made higher.

5. Transparency and Appearance

It is equally important to note that PLA is a transparent plastic which is very useful in applications that require clarity, such as the packaging of food. Most importantly, saying that PLA can either be coloured or modified to enhance the appealing aesthetics would not be underrated as well in a critical application.

6. Ease of Processing

This also bodes well for the practicality of PLA in that it can be built by processes that have been used in the past by plastics, but there is also the addition of the curved layering involved in 3D Printing, and the most prevalent ability for all manufacturers retards the reduction of waste. It wraps well within an industrial scale at typical extrusion temperatures (i.e., 190-230°C), ensuring continuous formation of products of the same quality.

7. Chemical Resistance

Despite being largely appreciated and acknowledged to have resistance to oils and fats, there are insufficient solvents and high-moisture applications in which PLA will be of use.

8. Environmental Impact

Production of PLA contributes to a decrease in the greenhouse effect, forming an enormous leap in comparison with conventional plastics. Thus, the amount of CO₂ or other gases will be much more beneficial, even producing one kilogram of PLA emits about 0.5, and the rest of the CO₂ comes from the production.

Best Types of Super Glue for PLA

For bonding PLA, cyanoacrylate binding glues, which are often referred to as super glues, are in most circumstances the best. Their quick hardening time and high bond strength make them perfect where precise bonding is required. These are the best types of super glue to use when bonding PLA:

1. Standard Cyanoacrylate Glue (CA Glue)

Appropriate for most PLA bonding requirements, it creates a secure bond that is hard to break. To achieve better results, ensure the surfaces are clean and dry.

2. Gel-Based Super Glue

Like Gorilla Glue Gel or Loctite Gel applications are less likely to spread and provide better ease of use even when used on walls or bumpy areas.

3. Plastic-Specific Super Glue

For instance, some adhesive solutions are perfect for certain plastic materials more than others such as Loctite Plastics Bonding System. These may also come with a varnish for use on PLA for even better adhesion.

As we see, superglue added to the PLA that has been sanded would result in the best CATA. The binds here are not limited to adhesion properties as per the examples because stronger bonding, in this case, will bring out another property of the adhesive.

Top Brands and Formulas for Bonding PLA

1. Loctite Plastics Bonding System

Loctite Plastics Bonding System is an adhesive specifically designed for bonding difficult materials such as PLA. The system includes a primer that promotes adhesion especially to smooth or non-porous surfaces enabling a strong bond that lasts long.

2. Gorilla Super Glue Gel

A high-performing adhesive for static-fearing uses, Gorilla Glue, and specifically PLA Adhesive, is a gel-like adhesive and gets fine and even coverage without dripping, which makes it useful for standstill applications because of the way it applies. The cyanoacrylic polymer-based structure of the different components gives a very small period between sticking and waiting, which is now a very important point in the case of diversification of PLA parts.

3. 3M Scotch-Weld Plastic Adhesive DP8010

Though their credibility lies in industrial will, they direct low-altitude energy bonding especially with PLAs. It has dual components and can be used for load bearing designs where high strength is needed and is easy to handle for accurate work.

4. JB Weld Plastic Bonder

JB Weld’s two-part resin epoxy combines high tensile strength, high durability, and the ability to bond PLA with a certain accuracy level. This kind of glue can be perfect for use in high-stress or torsion conditions.

5. Devcon Plastic Welder

Comparison of Super Glue Gel vs. Liquid Super Glue

Step-by-Step Guide to Bonding PLA Parts Together

1. Prepare the Surfaces

It is also very important to ensure that the PLA components are free from dust, oil, and dirt. For best adhesion, high levels of isopropyl alcohol or mild detergents are to be used in cleaning the bonding provision at all times.

2. Sand the Edges (Optional)

Wear and tear the end of the joint slightly or steel out the jointing surfaces to make the surface rough. This concept is good for the bonding that will be done later because the attaching bond will hold on for greater extended periods.

3. Choose the Right Adhesive

In fact, use adhesives with lower glass transition temperatures. For example, for certain applications requiring high strength or long-term bonding, cyanoacrylate (super glue) or a two-part epoxy is the right choice.

4. Apply the Adhesive

Apply a thin, even layer of adhesive on one of the surfaces to be bonded. Avoid excessive application, as this could weaken the bond or create a messy finish.

5. Join the Parts

Adhere the elements together. Synchronise their efforts. Secure the elements for the duration specified by the gypsum powder manufacturer.

6. Clamp for Stability (Optional)

To make a more reliable adhesion, make sure you clamp the parts together when the adhesive cures. This is vital for big or heavy objects.

7. Allow for Curing Time

Wait until the adhesive dries, and then check if incomplete drying is allowed by the manufacturer. Be sure not to rock the items while making a joint.

8. Inspect the Bond

Application Methods for Super Glue on PLA

One of the most appreciated qualities of the thermoplastic polymer PLA is superglue reaction fast and creates great adhesion, with regard to this, super eluyte is considered suitable for joining PLA and other acrylates. Here are the proper ways in which super glue can be used:

1. Surface Preparation

Start by making sure to clean the PLA material surfaces perfectly so that no dust, oil or residues whatsoever are left on them. Isopropyl alcohol and a dust or lint-free paper will help in this action. For better adhesion, significantly fine-grained sandpaper is used on the contacting mating surfaces in order to create small markings on them in the form of tiny scratches which can be helpful to allow the adhesive to go deeper.

2. Controlled Application of Adhesive

Next, introduce a limited but appropriate lubricant on only one surface. Refrain from overuse of the adhesive as too much adhesive may result in spillage, thus weakening the joint or forming unwanted adhesive lines. Super glue has a precision tip that can be used in small and intricately designed areas to avoid errors during application before administering the adhesive.

3. Applying Pressure for Bonding

After aligning the joints, even squeezes and spreading of the glue by applying force ensures better spreading of the adhesives. This practice assists in eliminating air voids and facilitates the development of stronger bonds. For bonding of greater pressural expectations, require clamps and weights to ensure that the surfaces of the bonding materials remain in contact.

4. Cure in a Stable Environment

This does not mean that the adhesives chemically bond the other plastics and fillers. The cyanoacrylate ‘cures’ upon coming into contact with moisture in the air, accelerating under humid conditions. It is therefore necessary to keep the working environment only moderately humid, which is approximately 40 to 60 %. High temperatures are known to expedite the adhesive curing but extreme heat is not recommended as it may alter the shape of the PLA.

5. Post-Cure Inspection and Finishing

Accordingly, after the adhesive has dried and the part is in place, the joint is carefully examined for any defects whatsoever, e.g, breakage and weakening. Where necessary, remove any adhesive that stabilizes the part after which residue can be cleaned using a sharp blade or fine sandpaper. And it is possible not only for the adhered part to be polished in order for it to get the same texture as the other pla when the job is well done

Ensuring a Strong Bond: Tips and Tricks

1. Surface Preparation: One important thing that one must consider when needing to bond PLA and cyanoacrylate is proper surface preparation. Very carefully remove any dirt and grease or any other contamination by cleaning using Isopropyl Alcohol. Besides, for improved bonding, it is advisable that the surface of the PLA is gently abraded using a fine grade of sand paper (e.g., 320-400) to produce a slightly rough surface which helps in allowing the adhesive to better wet out.
2. Glue Application Technique: The superglue should be applied in a uniform thin coat on one of the surfaces to be bonded. Be careful not to use too much of the adhesive as it may result in this becoming less effective and there may be problems in the curing process. Less quantity means less effort in making the surfaces even as well as less time for curing.
3. Clamping Pressure: In order to maximize bond strength, breathtaking clamping forces are recommended to be exerted along the bonded seam. This ensures a stable and strong bond as there are no voids that remain between the faces. Use clamps that release stress throughout both faces and keep the faces in the same position during curing time.
4. Temperature and Humidity: Conditions set in place regarding the weather during bonding process, play a greater role in how well the adhesive shall operate. The best conditions are considered to be exposure to temperatures ranging from 18°C to 22°C (65°F to 85°F) dry and moderate humidity. High humidities may help with fast curing but at the same time may cause stress marks in the bond that were formed.
5. Glue Selection: All-cyanoacrylate adhesives are not all the same. For PLA items, plain cyanoacrylate adhesives, which are called “medium viscosity,” should be used. This is because they are the most workable and strongest adhesives and can be used for both small and large items.

Comparative Analysis of Adhesives for 3D Printed Parts

1. Cyanoacrylate (Super Glue)

• Best For: PLA, ABS and small repairs where fast cure is required.
• Advantages: Epoxy adhesives are capable of curing fast and create a high strength bond for non-flexible connections.
• Limitations: Epoxy bonds can lose toughness with age and are not the best solution for elastomeric parts.

2. Epoxy Adhesives

• Best For: When working with large parts that happen to be nearby one another or when there is a need for a very strong connection.
• Advantages: Relative tensile or shear strength of epoxy adhesives is notably higher than the tensile or shear strength of the primary adhesive or coatings, durable adhesion to multiple substrates.
• Limitations: Takes much longer to cure and always needs to be mixed well before application.

3. Plastic Weld Solvents

• Best For: ABS (or other chemically-reactive plastics).
• Advantages: It works by then slightly melting the plastic to form chemical ties between the two surfaces and those bonds are often near-seamless
• Limitations: Only a few types of plastics can be welded and even these few have to be applied very carefully

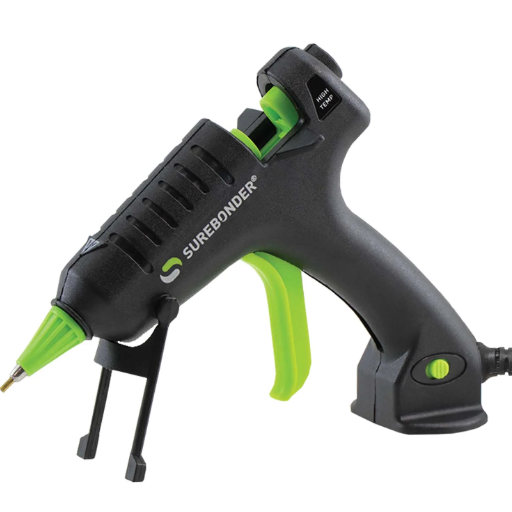

4. Hot Glue

• Best For: Temporary bonds or non-load-bearing connections.
• Advantages: Easy to use, fast application.
• Limitations: Low heat resistant nature, not beneficial for applications bearing high loads.

Epoxy vs. Super Glue for PLA

Choosing the Right Adhesive for Your Project

When choosing a suitable bonding material, many technical considerations must be evaluated: such factors ensure the material’s performance and the longevity of the bond. This includes the following:

1. Material Compatibility: Understanding the materials that are to be bonded such as plastics, metal, wood, or ceramics, if they match suitability of the adhesive used in a given application. For better understanding, such adhesives may not be very effective in LARGE parts of materials i.e. PLA can be easily bonded with cyanoacrylate adhesive, but one would not apply cyanoacrylate adhesive virtually everywhere. This however is not the case for epoxy adhesives.
2. Bond Strength: Depending on the load upon the bonded area, the call for appropriate adhesive will differ. High stress will always entail the use of epoxy adhesives because, on top of other applications, they have excellent tensile and shear strength thus is more than capable of carrying out the application.
3. Environmental Resistance: Find out what factors of the environment the adhesive will face — the impact of temperature, moisture or chemicals, periods of exposure — and guidelines from there. Epoxy adhesives are good for such issues whereas in some circumstances cyanoacrylate adhesives may degrade over time due to contact with water.
4. Application Method: The softer it is to employ the product, the better the working process. Some tasks which require perfect measurement may have single-step adhesives, such as cyanoacrylate on them. Other tasks, which are large or even too intrinsic, may need those mixed component like the epoxy.
5. Curing Time: The time it takes to cure regular adhesives should be matched with the off take at project construction or during production. Epoxy adhesives cure for a longer period and this allows for its correction during application while cyanoacrylates cure in a few seconds curing in small affixation jobs.
6. Gap-Filling Capabilities: While loose and uneven surfaces are a non-issue, the adhesive products indicated should be related, such as on the basis of perfect gap filling in some cases (two-component epoxies are a perfect example) as they hold in position perfectly no matter the nature of the underlying surface.

Taking time to digest and evaluate these dynamics by your project purpose you will be in a position to select an adhesive that will serve its purpose well and not cause you failure even no matter how long you are. Make it a point to always check the technical data sheet provided by the manufacturer for accurate and application specific information in regards to dos and don’ts.

Durability and Performance of PLA Super Glue Bonds

The long-term success of PLA superglue joints is significantly influenced by various parameters like the adhesive type and methodology, the preparation of the bonding surfaces, as well as the surrounding conditions. An example of a PL defeat glue, the Cyanoacrylate glue forms very strong bonds when used on clean and dry surfaces. Even so the low surface energy of PLA can deteriorate adhesion sometimes hence requires good treatment of surface. Bond strength can be improved by sanding the surface lightly or using a primer. It is recommended that one should have in mind the environmental conditions in which the bonds will function in recent or future times, especially with reference to the effects of clean-room conditions. It is highly possible that PLA super glue bonds may not withstand high temperatures or prolonged exposure to water, since PLA is highly heat and water-sensitive. In such cases, bonding agents that are suitable for such conditions, like some special cyanoacrylates or the two-part epoxies, are preferable. Always refer to the advice of the manufacturer of the adhesive to achieve the best possible outcome.

Long-term Performance Under Stress and Temperature Changes

The mechanical and thermal characteristics of a substrate and its adhesive are crucial, particularly for materials that are exposed to combined effects of stress and cyclic changes of temperature over long durations. In the case of sustained or repeated loading, especially in situations where the structure is subject to cyclic and dynamic loading, material fatigue or weakening of the bonding is unavoidable in most cases. For instance, a two-part adhesive system, especially those with high cross-linked features, that can withstand environmental conditions or withstand thermal cycles in applications where load transfer is crucial, may be far better than the general epoxies. Meanwhile, there are thermoplastics that are not as harsh as solvents and yet thermally susceptible, such as those specifically made for bonding, which are general-purpose cyanoacrylates, which may experience a decrease in adhesion depending on the amount of temperature treatment. Dairy Aroma Co. 12 generally, adhesives you go through these conditions often in industrial topping machines.

The data that is available states that objects that have expansion ratios (CTE) higher than normal, which makes them prone to stressing, especially thin areas concerning adhesive films, where thermal expansion and contraction cycles lead to adhesion force. The best solution to this problem is a glue with a similar CTE in relation to the glued elements. In some cases, it will help to improve the adhesive performance by adding some mechanical fastenings or other methods, such as applying primers on the surface in contact with the adhesives in question.

Testing the Strength of PLA Adhesives

Tests such as tensile and shear tests are required to evaluate the tensile and shear strength of a PLA adhesive. In fact, they are more critical since they measure the behavior of the adhesive against an external force of any kind. Tensile testing specifically includes the application of pulling forces until fracture in the attached PLA tests and reveals progressive failure of the bonding. Shear testing on the other hand checks the strength of the adhesion to resist types of forces that cause the two materials to move apart from each other horizontally on the bond plane.
