Best Glue for PLA 3D Prints: Guide to Bonding Your Parts Together

Careful techniques and precise selections of adhesives during the processes of assembling, repairing, or reinforcing PLA 3D prints not only enhance their beauty but strengthen their parts too. Considering the many pastes, glues, and step-wise methods available for 3D print restoration, choosing the ideal solution can be very difficult. This is done to enable decision making around the processes and adhesives needed for PLA, elements to be considered during selection, and pro-level PLA bonding tips. Continue reading to make informed choices to augment your projects through optimal PLA glue selections.

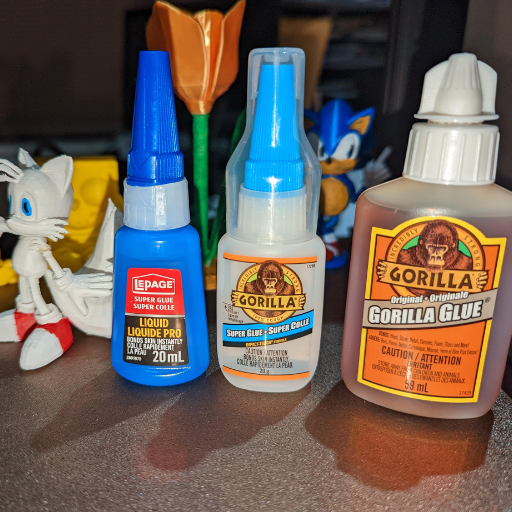

What’s the Best Glue for PLA 3D Prints?

For gluing PLA 3D prints, one of the most dependable choices would be cyanoacrylate glue, or super glue as it is often referred to. It is very easy to apply, especially for super glue, balancing speed and strength of adhesion. For a greater scale or more complex assemblies, two-part epoxy adhesives are an effective alternative since they work with uneven surfaces. Surface preparation such as cleaning and light sanding will strengthen adhesion regardless of the adhesive used.

Understanding PLA and Its Properties

Consider the thermoplastic polymer PLA (Polylactic Acid), which biodegrades and elicits a lower environmental impact—and is relatively easy to work with—in utilization, surface finishing, and amputan use in 3D printing. PLA can be derived from renewable resources like corn starch and sugarcane. Its mechanical properties include a moderate tensile strength, rigidity, and low tendency to warp. Moreover, it is easier to extrude polymers with lower melting points, and is thus low temperate extraction adhering heating restriction of about 180℃ to 220℃. Important to note though is that trapeziums of PLA, with an upper bound of around 60℃, tends to be brittle under certain temperature conditions. These factors can limit the precision and dimensionally stable manufacturing aimed for PLA. Understanding these properties enable users to optimize PLA’s performance for specific applications while ensuring sustainable data usage.

Top Adhesives for PLA 3D Printed Parts

Achieving strong and resistant joints hinges on picking the right adhesive when dealing with PLA 3D printed parts. A biodegradable thermoplastic such as PLA has some properties which makes it less compatible with some adhesives. Below is a detailed overview of the top adhesives suited for PLA:

1. Cyanoacrylate (Super Glue): These type of adhesives stand out from the restwhen it comes to PLA with their fast curing time and their remarkable bonding capabilities. These super glues work for small and intricate part joins. Clean and oil free PLA surfaces guarantee better adhesion.
2. Epoxy Adhesives: Epoxy provides high strength bonds along with an equally high capacity for filling gaps which comes in handy in reinforcing structures. Two-part epoxies which are in the form of a resin and a hardener, work fairly well with PLA, but may need some more time to cure depending on the formulation forresting out of curing.
3. Polyurethane Adhesives: These ESA or Polyurethane-based adhesives fall into the category of wide-scope mechanical adhesives, with the downside that they don’t stand up so well to high temperatures. While giving slight mechanical stress to PLA parts, these adhesives show a durable bond while withstanding various environmental factors.
4. Acrylic Adhesives: These adhesives resist peel strain and stick well to PLA, bonding parts subjected to moderate environmental conditions. Some of them may need abrasion or primer to be more effective.

As with any other adhesive, they have their pros and cons pertinent to different projects one may have. In making a choice, you should take into consideration factors like the intended use of the PLA parts, bond strength, curing time, environmental factors and use PLA parts.

How to Choose the Right Glue for PLA

Evaluating your procedures for durability and reliability in adhesion holds great importance while selecting the appropriate adhesive for PLA. The first step in the procedure would be selecting what kind of stress you are expecting at the adhesive joint. It can either be a static load, dynamic load; humidity, heat, or cold exposure. Among all previously mentioned types of stresses, for high strength and permanent bond, cyanoacrylate glue (CA glue) won’t let you down. This is because CA glue works greatly on thermoplastics such as PLA and it has a short bond forming time, turning it into a favorite of many. However, if the application requires greater thermal or impact resistance, epoxy adhesives are the best option, given their high durability and the ability to cure in a controlled environment.

Also, take into consideration if the project has a larger surface area or more complex geometry. In cases where large uneven bonding surfaces exist, polyurethane adhesives are excellent gap fillers while providing flexibility. For temporary bond or non-permanent structural components, hot glue works great. However, it will soften if exposed to heat for a long time. Last but not least, solvent-based adhesives like methylene or dichloromethane weld PLA chemically, forming strong, seamless joints; however, due to their flammability and toxic nature, these substances need to be handled with care.

How to Glue PLA Parts Together Effectively?

Following best practices for glue application is vital for ensuring a PLA joint will hold. Practitioners should start by cleaning the surfaces thoroughly and ensuring they are free of dust, dirt, or debris. Grease accumulation also needs to be dealt with. It is recommended to sand the surfaces to be glued together with fine sandpaper gently. This will enable better adhesion due to enhanced surface texture. For precise and powerful adhesion, cyanoacrylate superglue is recommended, albeit it needs to be applied carefully in thin layers on one of the surfaces while the second surface is pressed down firmly. Epoxy adhesive is better suited for uneven large areas where it can offer long-lasting and robust bonds along with exceptional strength. The package instructions regarding the curing period of the adhesive needs to be followed carefully to attain complete bond strength as suggested by the manufacturer.

Step-by-Step Guide to Gluing PLA

1. Prepare the Surface

To enhance cleaning procedures, a 70% IPA solution can be utilized for cleaning PLA surfaces by wiping with a soft cloth to remove any dirt, grease, or contaminants. Afterward, the bonds can be sanded with finer sandpaper (e.g., 400–600 grit) especially around the edges to aid adhesion to the PLA surfaces by enhancing the area that adhesive can occupy thus making the bond stronger.

2. Choose the Appropriate Adhesive

You should ensure proper selection for a glue depending on its application:

– For precision work, cyanoacrylate superglue is suggested due to its quick action and support of low-stress conditions.

– For greater areas and thorough vertical adhesion, a two-part epoxy adhesive is recommended. Epoxy provides useful adhesion strength and durability, and even supports gap filling on uneven surfaces.

3. Application of Adhesive

While maintaining even distribution to one side of the PLA part, apply the adhesive lightly. Take care not to apply too much because this will lead to excess mess, jeopardizing the bond. A thin layer suffices for cyanoacrylate. Epoxy requires proper mixing of resin and hardener before application in the ration set by the manufacturer to be applied.

4. Join the Parts

After the parts are aligned, apply pressure so that the surfaces of the components bond. Add clamps or compressive weights as needed to deliver consistent pressure. Relocating during bond curing may limit strength; therefore, any motion which may invite weakness should be avoided.

5. Allow for Curing Time

Different adhesives have different cure times:

– Cyanoacrylate bonds in a couple of seconds, and can keep the bond for a few minutes. He/she may need to wait for full strength.

– Epoxy may take several hours to fully cure depending on the formulation, but others may significantly differ while adhering to the manufacturer guideline’s best practice on minimal cues.

6. Final Inspection

Conduct an inspection for stability after the adhesive has cured completely. If there is any excess adhesive that has come out during the bonding phase, ensure to trim or sand it so that it has a tidy finish.

With these explained procedures and following them meticulously, one is able to bond PLA 3D printed components together strongly and durably while maintaining their structural integrity and functionality.

Best Practices for Applying Adhesive

By following these best practices, the application of an adhesive will be maximized in effectiveness and longevity:

1. Surface Preparation is Critical

Surface cleaning techniques can guarantee a successful adhesive bond. All connective surfaces must contact gaps, be dry, and free from any contaminants like dust, grease or oils. Touching the cleaned surfaces with hands will contaminate them, preventing the use of isopropyl alcohol or appropriate solvents for cleaning to become effective.

2. Select the Right Adhesive for the Material

Examining the characteristics of the adhesive, its thermal resistance, flexibility, and curing requirements will all determine if the application is appropriate. Some adhesives have strict restrictions towards materials with cyanoacrylate adhesives working perfectly on rigid plastics like PLA while epoxies excel at high shear strength and load bearing joints.

3. Apply Adhesive Evenly and in the Correct Amount

Adhesive bonds can be used at varying thickness as long as even so each layer of adhesive provides equal thickness proportionally. To achieve uniform thickness precision is needed to achieve accuracy and therefore brushes, syringes, and nozzles can be used. Strict adherence to manufacturer’s guidelines ensures predictably uniform outcomes.

Performance and durability of bonds is critical in challenging engineering or industrial contexts. Systematic best practices greatly increase adhesive strength bonds while providing optimal control.

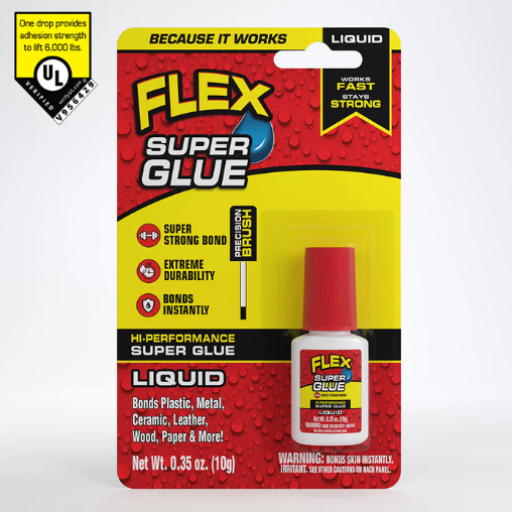

Can You Use Super Glue on PLA 3D Printed Parts?

Indeed, applying super glue (cyanoacrylate) to PLA 3D printed components is permissible. The effectiveness of super glue in bonding with PLA stems from its capability to seep into and grip the surface texture of the material. Also, it is recommended that the surfaces to be joined together are closely aligned without gaps. Light sanding of the bonding surfaces can further enhance adherence. Nonetheless, super glue works best on low-stress, static components as the adhesive tends to fail under heavy workloads or high-stress connections.

Benefits of Using Super Glue for PLA

1. Rapid Bonding Time

As for PLA surfaces, super glue has an exceptionally fast cure time, often plastering surfaces together in seconds to minutes. This comes in handy for parts that need to be rapidly assembled or fixed. Reduced downtime from the fast-acting nature of super glue benefits workflow productivity.

2. Strong Bond on PLA’s Non-Porous Surface

Super glue should especially be effective on PLA parts because PLA is semi-crystalline and relatively non-porous. Formulated to work at a microscopically rough surface, super glue, especially cyanoacrylate, works by penetrating grooves and thus forms a solid bond. Through material science, cyanoacrylate adhesives have been shown to perform tensile strengths of 25-30 MPa on plastics like PLA meaning these materials can be classified as light to medium load bearing.

3. Ease of Application

The exact applicators for super glue ensure that the bonding processes are mess free, and control is maintained during application. This is precision is very important for PLA projects as well as models.

Considering these factors, super glue is a very good and effective adhesive for PLA as it is highly convenient, works very well, and is inexpensive.

Comparing Super Glue to Other Adhesives

Tips for Using Super Glue with PLA

1. Surface Preparation

Proper sanding ensures a good method for achieving strong adhesion with PLA. Sanding to join will be made easier with sandpapers in the range of 220 to 400 grit. Sanding increases the roughness of surface profiles that the adhesive bonds will form on and thus improves adhesion. It is critical to remove any dust, oil, or other residues from the surfaces before gluing to achieve the strongest bond possible. Isopropyl alcohol works best for PLA surfaces.

2. Apply Glue Sparingly

The glue should be applied in even coats, keeping the overall thickness to a minimum. Clear PLA parts can tend to be very optical therefore the use of too much adhesive may result in unpleasing side effects such as weaker bonds or longer curing times exposing glue residues. For small areas, 1 drop is often more than enough.

3. Clamping for Superior Bonding

Uniform pressure must be applied in order to obtain a stronger joint. PLA parts that need to be joined must first be properly positioned before using clamps or manual force to hold them for the glue setting period of 1-2 minutes. For larger and complex assemblies, ensure uniform pressure is placed on all areas of the joint.

4. Avoid Overloading Early

While super glue is fast acting (sets within 10-30 seconds), full cure can take up to 1 full day. During that duration, do not heavily straining or heavily loading the joined pieces to achieve optimal strength for the bonds.

Precision and Attention to Detail makes it significantly possible for users reinforcing the super glue bonds on PLA component parts, giving reliable durability, achieving PLA projects with long-lasting accuracy.

Is Gorilla Glue Suitable for PLA 3D Prints?

Gorilla Glue is effective for joining PLA 3D made prints, but effectiveness will depend on each individual type of Gorilla Glue and the needs of the specific application. An example will be provided, for example, Gorilla Super Glue (which operates under the cyanoacrylate household) works wonderfully for fast and strong PLA surface bonds. Original Gorilla Glue (polyurethane based) does not work so effectively because it gets moisture to cure and expands while drying, it is not practical where precision is required. The user should pay attention while preparing the piece’s surface as well as selecting the right type of the glue for the project.

Understanding Gorilla Glue Properties

Product 3G Gorilla Super Glue demonstrates the special physical features of glue products offered by the Company. It is a cyanoacrylate glue so it works well with dissimilar materials such as plastics as well as metals and ceramics. Product works almost instantaneously and capillary action due to gravity virtually prepares the bond surface. In contexts where precision is key, the user’s access to time is virtually non-existent. On the other hand, product ‘Gorilla Glue Original’ is different having its base of polyurethane, which expands when curing. This glue is more suitable for porous materials such as woods, foams and some fabrics. This character guarantees deep bonding, but slack needs to be provided for expansion and needs to be taken into consideration otherwise delicate work would be very inaccurate due to overflowing / draping of glue.

Moreover, adhesive ‘Gorilla Epoxy’ is the combination of a resin and hardener which creates a chemical bond that is not only tough but also water resistant. This bond is very useful due to its easy application on high demanding works like fixing broken automotive parts or gluing glasses and metals. With knowing these types of products, one can use them for their purpose based on the correct time for curing and weather. As usual, follow the instructions of the Company for best results and durability.

How to Use Gorilla Glue on 3D Prints

Applying 3D Print Techniques requires using Gorilla glue carefully along with placing adequate preparation practices in order to guarantee a bond that is long-lasting. The first steps include cleaning the items to remove all dust, grease, or other particles to provide a bond that is of high strength. Best adhesion is easily attained by lightly sanding the printed surface with fine-grit sandpaper and creating a rough texture is easier to bond with glue. Do not forget to apply a small amount of Gorilla glue as it tends to expand while curing. Apply it evenly for uniform gaps and connections.

Align the displayed parts accurately and clamp them in position to maintain the shape and alignment firmly till the glue hardens. Do not forget to allow adequate time for the adhesive to dry which is typically between 1-2 hours although the full cure depends on environmental factors and can take up to 24 hours. When dealing with materials such as PLA or ABS filaments, Gorilla Glue works the best because it can chemically bond with plastics. For optimal results, do remember to follow all the safety measures mentioned in the product instruction.

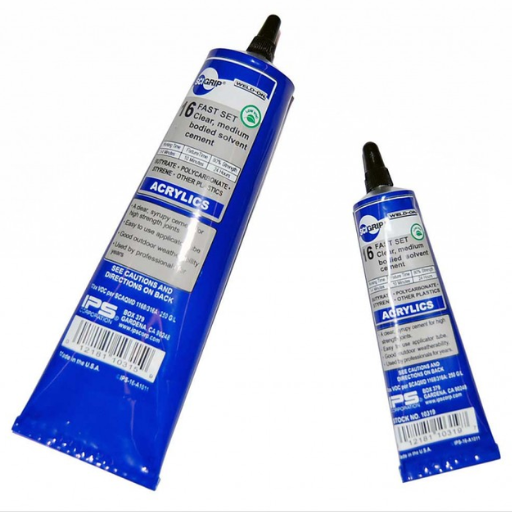

What is the Best Way to Glue 3D Printed Parts?

Each individual component of a 3D print is best glued together based on the material that was used to create the print. Cyanoacrylate glue, or super glue, works best with PLA as it has fast curing pace and forms strong bonds. ABS parts can also be glued together using acetone. This melts the upper layers of the material, allowing the parts to form a strong bond. Smooth and clean surfaces should always be preferred for all parts joining as the glue bonds more effectively when applied to clean surfaces. As a best practice, instructions provided by adhesive manufacturers should be followed and their suggested workspaces be adhered to for optimal results.

Choosing Between Epoxy and Other Adhesives

Evaluating the epoxy and other adhesives options intertwines with project-related factors like materials, environmental considerations, and possible mechanical stresses. Epoxy adhesives are best when the application demands strength, chemical resistance, or durability over time. The two parts create a thermosetting plastic polymer which epoxy adhesives bond to metal, plastics, wood, and ceramics strongly. Epoxies are also advantageous for water, heat, and chemical exposure which makes them favorable in industrial and structural constrictions.

On the other hand, cyanoacrylate adhesives aka super glue works best where instant adhesion is needed for delicate parts or small repairs. Super glue does not compare to the versatility of epoxy when the bonded parts are subjected high forces or harsh environments. Another type, Polyurethane adhesives, has some versatility by making strong bonds on porous surfaces and having good moisture resistance, yet, they take a longer time to cure. Specific plastics such as polyethylene and polypropylene need specialized adhesives because of their very low surface energy require more work to bond them together.

How to Ensure a Strong Bond with 3D Printed Parts

For 3D printed parts, parts must be bonded properly to achieve durable connections. For this purpose, the selection of adhesives must fit the purpose, along with surface preparation and environmental conditions like temperature and humidity levels. Surface preparation is very important. In this case, gentle sanding of the bond area with fine sandpaper helps wear away stubborn remnants while increasing the area to form a bond. As stated previously, isopropyl alcohol assures the surface is free of dust, oils, or grease that could deactivate the glue’s bonding capabilities.

Just as critical is the selection of the right glue for the specific type of 3D printed material you have. In 3D printing, PLA and ABS thermoplastics are best suited with cyanoacrylate glues “super glues” as these materials are used. However, PETG and even flexible filaments tend to perform better with these glues due to their low surface energy. Adaptable bonders such as epoxies or polyurethanes are much better for these materials due to their low surface energy and strong bonding characteristics. Also, following manufacturer’s instructions on glue selection and material choices will strengthen the bond synergistically.

Lastly, temperature and humidity are environmental factors that will affect curing times adversely alongside bond integrity. Also, if maintained at the environment suggested with the adhesive’s curing conditions, this leads to a stronger bond. Adhering religiously to these guidance checkpoints assures dependable performance in the bonded 3D printed parts whether they are functional or aesthetic.

Reference Sources

1. 3D Printing on Textiles: Adhesion strength is influenced by fabric properties (e.g., thickness, weave pattern) and printing parameters (e.g., nozzle distance). Double-weave fabrics showed better adhesion due to deeper polymer penetration.

2. Additive Manufacturing Overview: Highlights the importance of selecting adhesives based on the mechanical properties of PLA and the intended application.

3. Failure Behavior of Bonded PLA Adherends: Joint strength improves with increased adherend thickness, overlap length, and printing angle. A 90° printing angle significantly enhances failure load.

Frequently Asked Questions (FAQs)

Q: What is the best way to glue PLA for 3D prints?

A: The best way to glue PLA together is to use adhesives specifically designed for plastics, such as super glue gel or epoxy resin. These types of glue provide a strong bond and are easy to apply.

Q: Can I use super glue for 3D prints?

A: Yes, super glue gel is an excellent choice for gluing PLA together. It sets quickly and is designed for plastics, making it ideal for bonding 3D prints.

Q: What are some other effective glues for PLA 3D prints?

A: Other effective glues for 3D prints include epoxy resin, Loctite, and Weld-On 16. Each of these adhesives offers strong bonding properties for joining pieces together.

Q: How do I apply the glue to my PLA prints?

A: To apply the glue, ensure the surfaces are clean and dry. You can use a small applicator for precision. Follow the manufacturer’s instructions for the best results, and consider using an activator for faster curing.

Q: Is it possible to glue PLA pieces together if they are not perfectly aligned?

A: Yes, it is possible to glue PLA pieces together even if they are not perfectly aligned. However, it is recommended to adjust them as much as possible before the glue sets to achieve a better finish.

Q: What is the shelf life of common glues for 3D printing?

A: The shelf life varies by product, but most glues for 3D printing, such as super glue and epoxy resin, typically last 6-12 months if stored properly. Always check the manufacturer’s instructions for specific guidance.

Q: Can I use PVA glue for PLA prints?

A: PVA glue is not recommended for bonding PLA as it is primarily used for paper and wood. For plastic materials, opt for glue designed for plastics, such as model cement or acrylic cement.

Q: What should I do if my glue does not bond PLA well?

A: If your glue does not bond PLA well, ensure that the surfaces are clean and dry before applying the glue. You can also try a different adhesive like MEK or a stronger epoxy if the current one isn’t effective.

Q: Are there any special techniques for gluing large PLA parts?

A: For large PLA parts, you can use a slurry made from the same PLA material to enhance the bond. Additionally, applying heat with a hot air tool can help fuse the pieces together more effectively.
